CNC Turret Punching Machines
Product Description

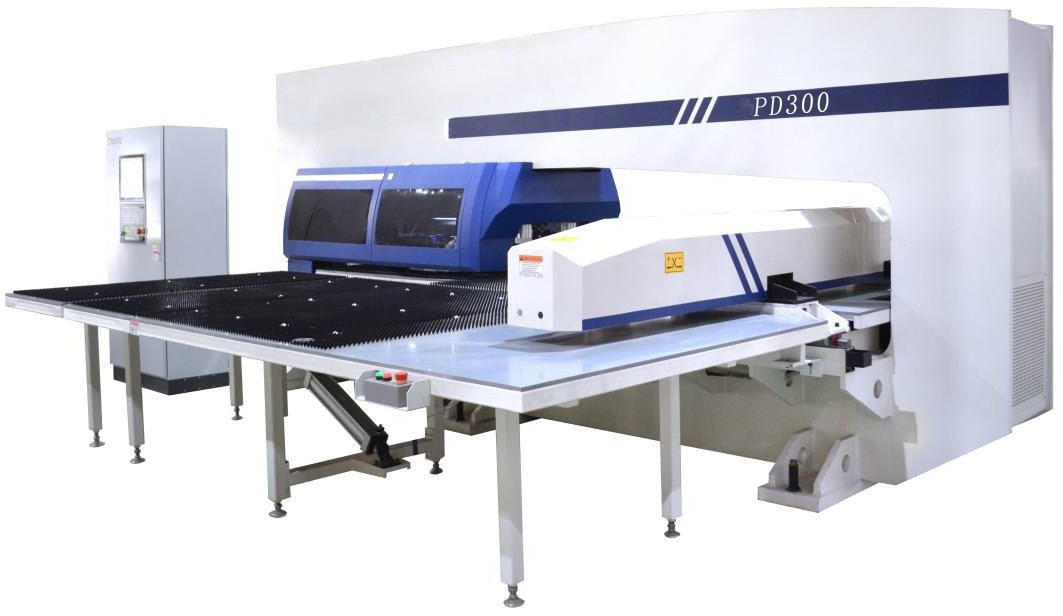

5 Axis BST-S300 CNC Electro Servo Drive Turret Punch Press/Punching Machine
Servo type CNC turret punching machine
Benefits at a glance
1. Most cost-effective in its class.
2. Low operating cost.
3. Excellent part quality.
4. Eco-friendly and economical
1, Adopts Taiwan numerical control system and servo module, with quick response and high precision.
2, X axis adopts double guide rail for guiding, gear rack for driving, it is very stable with high-speed and high precision, reached the international level.
3, Five-axis all electric control, can realize punching, stretching, and roller forming etc technology, it is suitable for precision sheet metal processing.
4, Energy conservation, standby without electricity consumption, effectively reduce energy consumption; Can choose downy mode, quiet and environment protection.
Specification:
| No. | Name | Specification | Unit | |
| 1 | Press capacity | 300 | KN | |
| 2 | Punching type | Servo | ||
| 3 | Frame construction | O-frame | ||
| 4 | Maximum sheet size | X axis |
5000 (With one re-positioning) |
mm |
| Y axis | 1250 | mm | ||
| 5 | Maximum sheet thickness | 6.35 | mm | |
| 6 | Maximum diameter | Φ88.9 | mm | |
| 7 | Maximum punching stroke | 32 | mm | |
| 8 | Maximum nibbling speed | 1500 | hpm | |
| 9 | No. of clamps | 3 | pcs | |
| 10 | No. of re-positioning cylinder | 2 | set | |
| 11 | Turret stations (Auto-index station) | 32(2B) | pcs | |
| 12 | No. of controlling axis | 5(X,Y,T,C,A) | pcs | |
| 13 | Tool distribution | 16A/10B/2BZ/2C/2D | ||
| 14 | Worktable structure | Brush and ball mixed | ||
| 15 | Maximum feeding speed | X axis | 80 | m/min |
| Y axis | 80 | m/min | ||
| X,Y combined | 110 | m/min | ||
| 16 | Turret speed | 30 | rpm | |
| 17 | Rotational tool speed | 40 | rpm | |
| 18 | Punching accuracy | ±0.10- | mm | |
| 19 | Maximum sheet weight | 150 | kg | |
| 20 | Air pressure | 0.6 | mpa | |
| 21 | Clamp dead area detection | Yes | ||
| 22 | Clamp splint loose alarm device | Yes | ||
| 23 | Plate warping alarm | Yes | ||
| 24 | Clamp automatically float down | Yes | ||
| 25 | Roller auxiliary feeding | Yes | ||
| 26 | Overall size | Length | 5170 | mm |
| Width | 5200 | mm | ||
| Height | 2300 | mm | ||
Products details:
-
O-type closed press frame special for servo punch press, holistic welding structure, stress relief from tempering treatment. The strong rigidity and high tonnage ensure the stable accuracy for long time, extend the service life of the machine and tools, and improve the positioning precision, reliability and durability of the punch press.The worktable surface with hard brush and steel ball, to lower down the noise while working and protect the surface of the sheet.The big space between guider will benefit with processing accuracy while fabricate large size sheet, and it has the better balance capacity while moving in high speed.The auxiliary platform can move with the sheet, reduce 30% of the friction force between the plate and brush platform.The floatable clamps reduce the deformation of the plate. With long clamps carriage, strong rigidity, clamps can move easily, The self-protection function makes no dead area for punching on sheet.Line guider and ball screw import from Taiwan HIWIN or German Rexroth, ensure the accuracy and long service life.The imported Pneumatic, and electric parts ensure the overall performance reliability.Centralized lubricating system, reduce the friction of all moving parts, prolong the service life of the machine.With knock-down hole, stretching, blinding, trimming and cutting angle, lettering type function.International standard long guide tool, different specifications with reasonable stations distribution, save tool cost and decrease the operation cost.
Tools List
| Station | Tool Size | Quantity | Layout |
| A | Φ1.5 - Φ12.7 | 16 | |
| B | Φ12.7 - Φ31.7 | 12 | |
| C | Φ31.7 - Φ50.8 | 2 | |
| D | Φ50.8 - Φ88.9 | 2 |
The processing sample:
Our Team:
Why Choose us?
1. China top 3 CNC Punching Machine Manufacturer.
2. 100% QC inspection Before Shipment.
3. Best Quality & Best Service with Competitive price.
