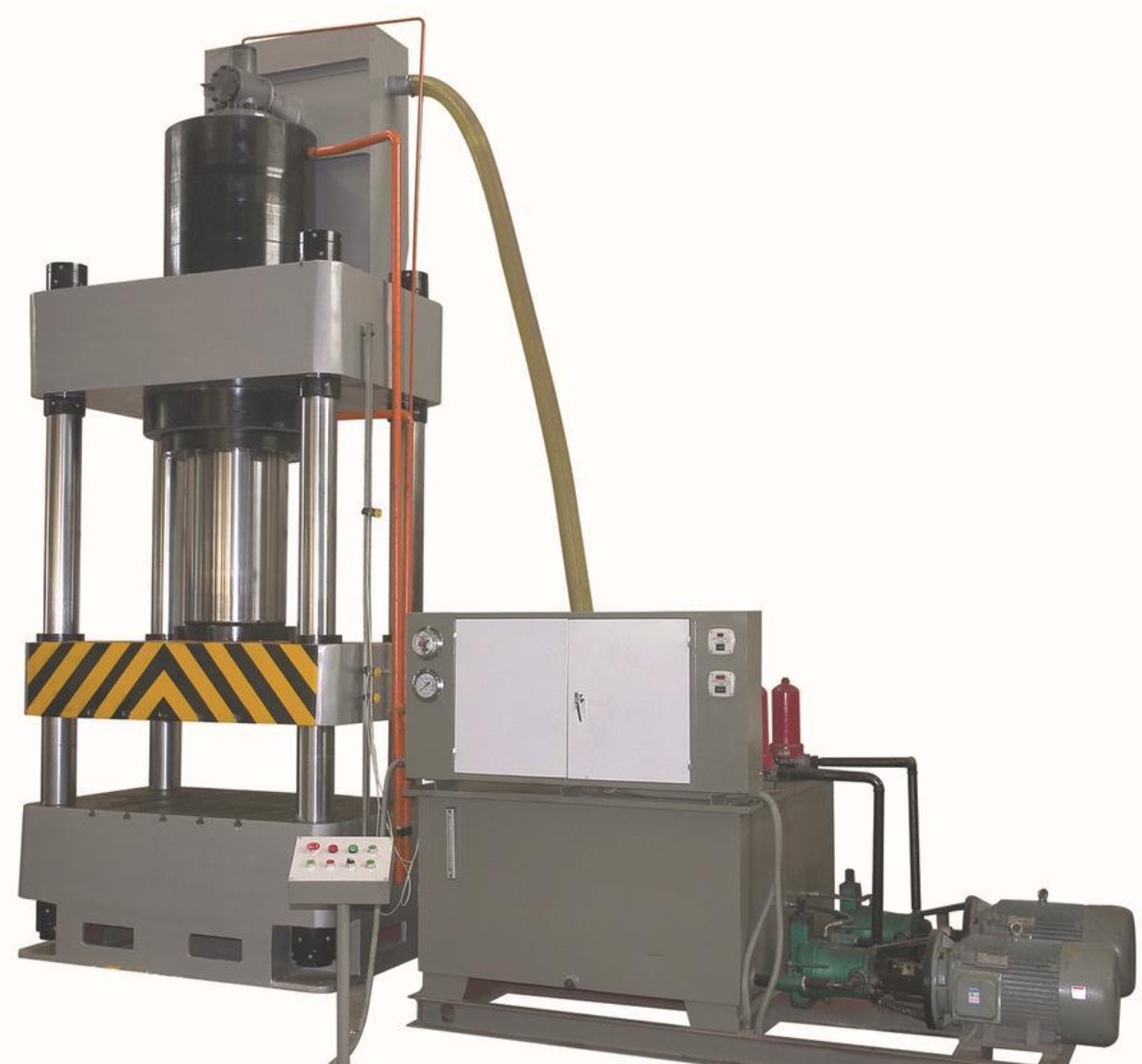

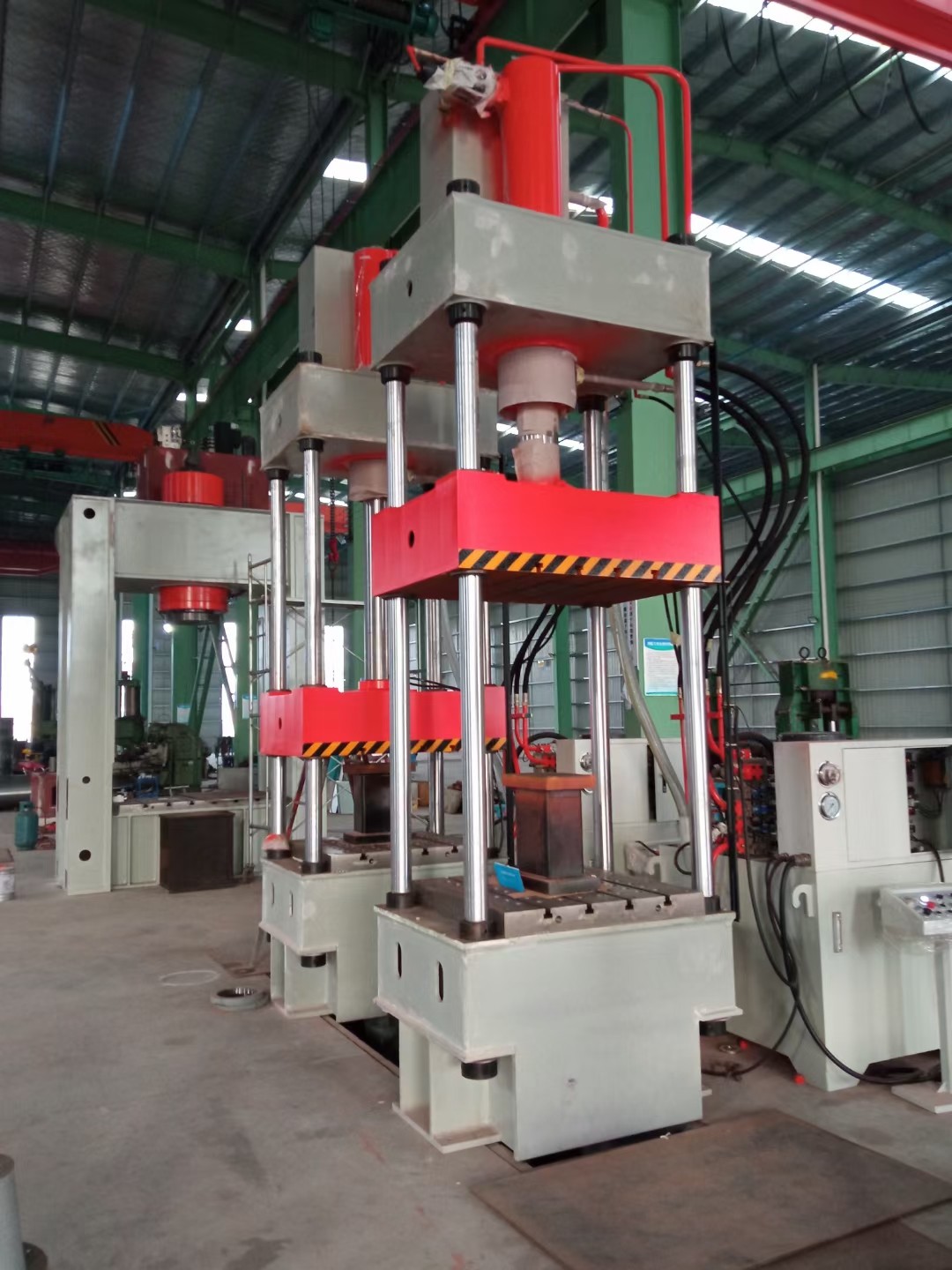

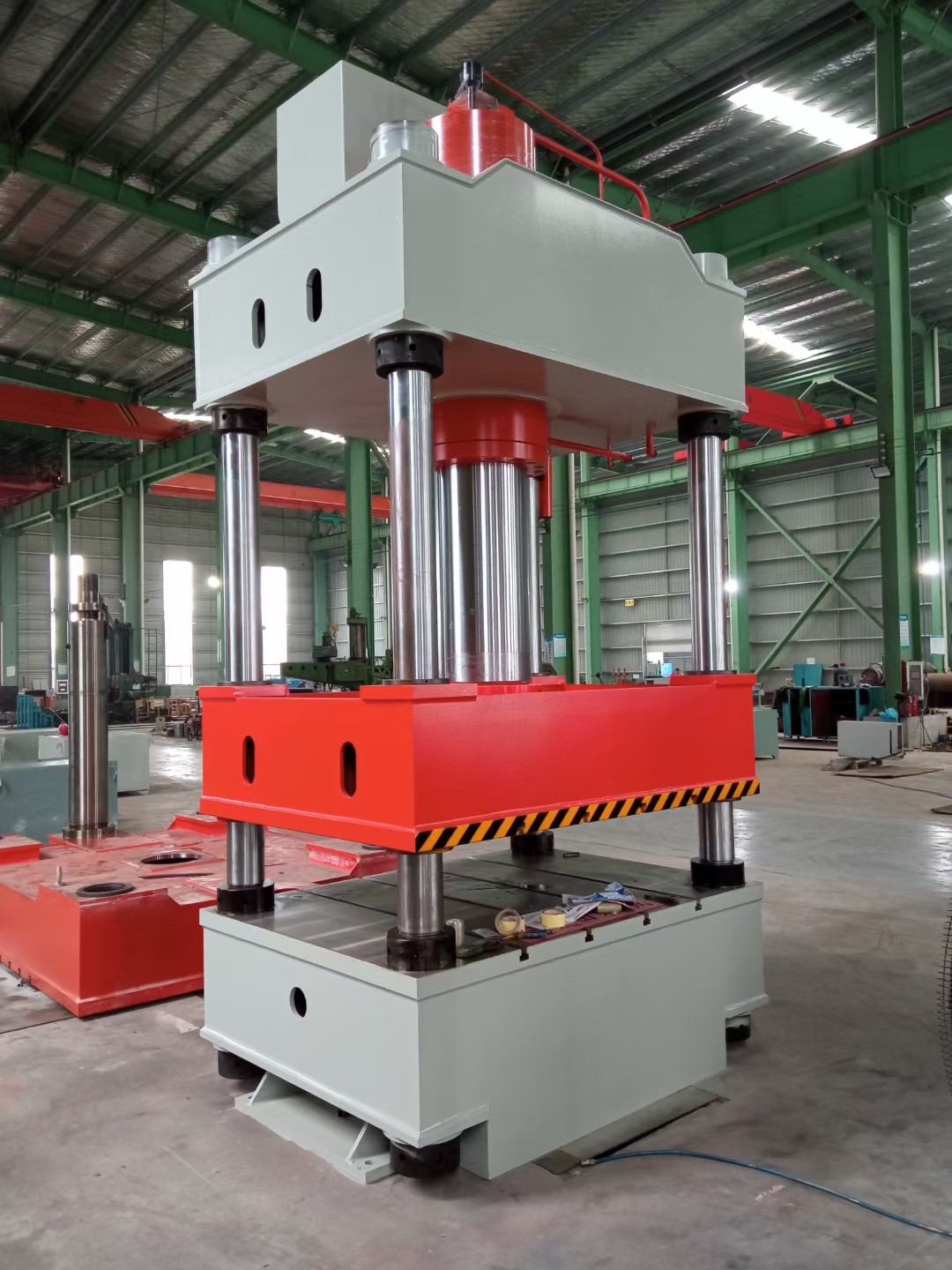

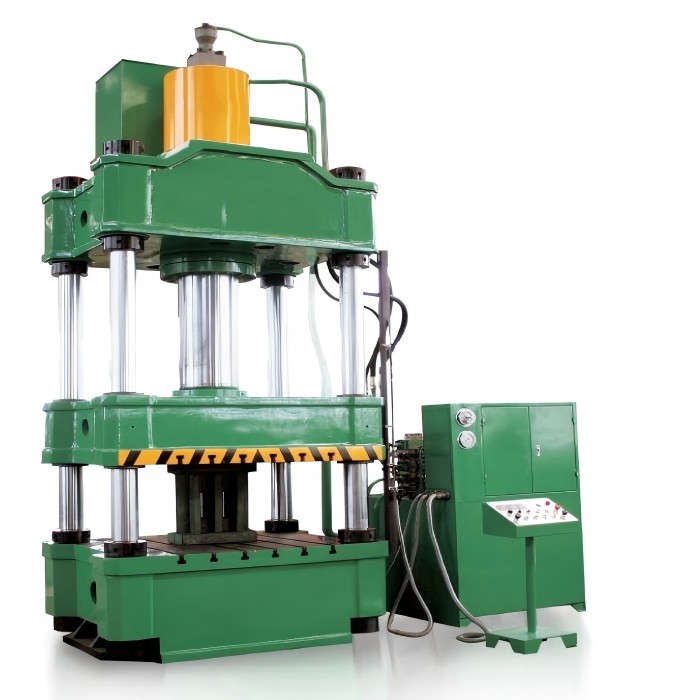

Four Column Hydraulic Press

Four Column Hydraulic Press

Short Description:

High-performance Four-Column Hydraulic Press: Ideal for metal forming, punching, bending, and compression molding. Stable structure, precise pressure control, and durable components—boost your production efficiency! Industrial Four-Column Hydraulic Press: Customizable tonnage (10T-1000T) for diverse needs (automotive parts, hardware, plastics). Easy operation, low maintenance, perfect for small t...


Product Details

Product Tags

Four Column Press Parameter

Parameters Max. liquid pressure Slide stroke Max.opening height Worktable size(L-R)*(F-B) Motor power Ejecting force Ejecting stroke
Unit MPa mm mm mm*mm KW KN mm
63T 25 400 700 520*520 5.5 200 200
100T 25 400 700 700*620 7.5 200 200
100T-K 25 500 800 700*620 7.5 200 200
150T 25 400 700 560*660 7.5 350 200
160T 25 400 800 800*800 7.5 300 250
200TA 25 400 800 660*660 7.5 350 250
200TA-K 25 600 1000 660*660 7.5 350 250
200TB 25 400 800 800*800 7.5 500 250
200TB-K 25 600 1000 800*800 7.5 500 250
200TC 25 400 800 1000*1000 7.5 500 250
200TC-K 25 600 1000 1000*1000 7.5 500 250
250T 25 400 800 800*800 11 500 250
250T-K 25 600 1000 800*800 11 500 250
315TA 25 400 700 700*700 11 500 250
315TB 25 500 800 800*800 11 500 250
315TC 25 600 1000 1000*1000 15 630 300
315TD 25 800 1250 1260*1200 22 630 300
500TA 25 600 1000 1000*1000 37 1000 300
500TB 25 600 1000 1500*1500 37 1000 300
500TC 25 800 1500 2500*1400 37 1000 350
630TA 25 600 1200 1200*1000 22*2 1000 350
630TB 25 900 1500 1600*1600 22*2 1000 350
630TC 25 900 1500 2200*1600 22*2 1000 350
800T 25 900 1500 1500*1500 37*2 1250 350
1000T 25 900 1500 1500*1500 37*2 1250 350
1250T 25 900
