Description
Product Features
Special bending craft,high precision pre-bending of the edge,digital control for bending process.
Rich shape bend such as O,U,R etc.
Cone bending device for conical bend easily.
Whole chassis,simple ground foundation,it's convenient to move the workplace.
According to the role or requirement of customer,economic digital display type or TNC digital control type is optional.
CE certificate.
|
Product Type: |
Hydraulic |
|
Roll Material: |
42CrMo |
|
Hydraulic System |
YUKEN from Japan |
|
Main Motor |
Siemens |
|
Feature: |
Prebending Function, Cone Bending, Rich Shape bending |
|
Reducer |
Hardened surface reducer |
|
Color: |
Customized |
|
Bearing |
WAFANGDIAN Bearing |

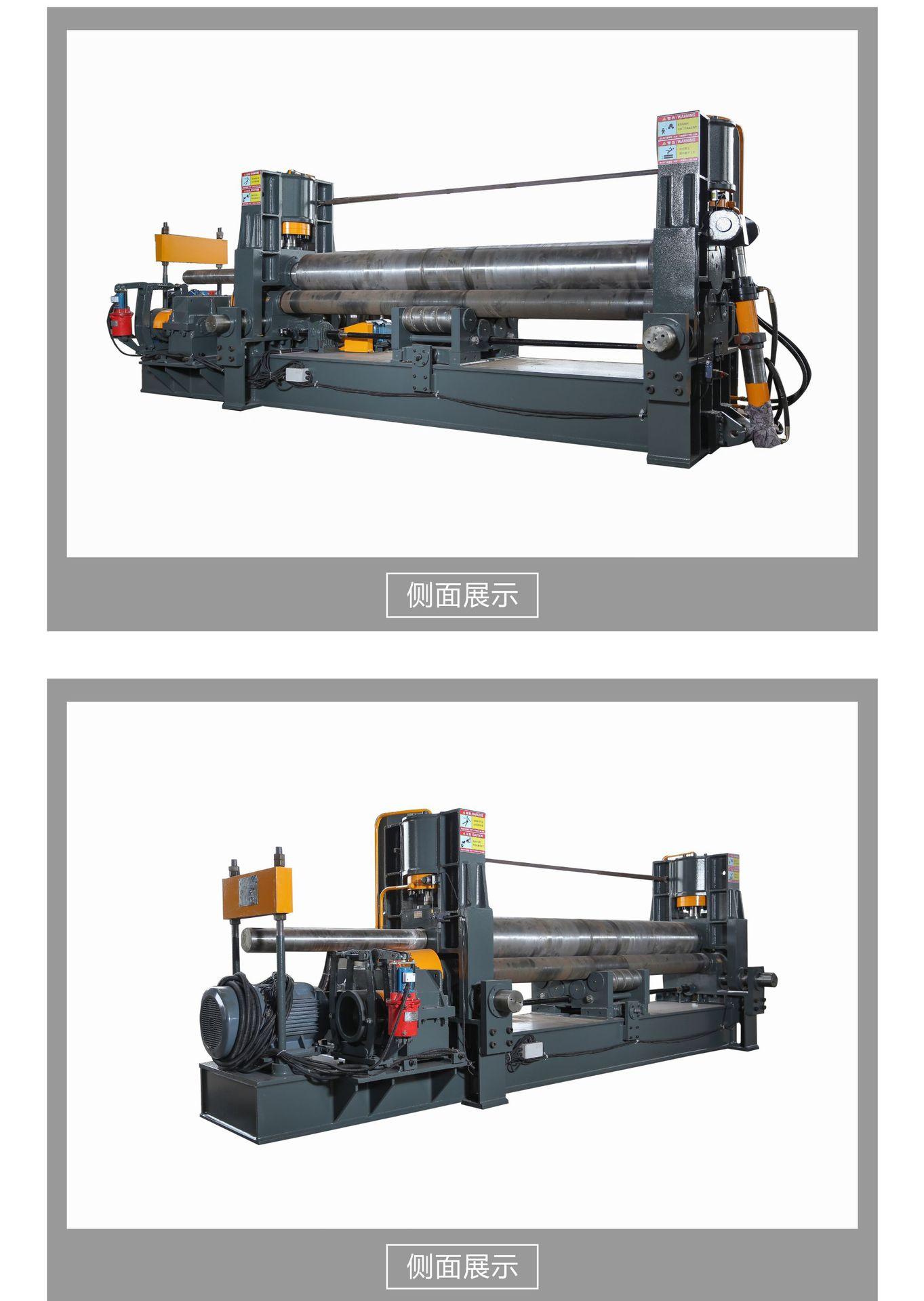

Product Display
HARDENED ROLLS WITH 42CrMo MATERIAL
● The top roller is designed as drum shape.
● Support roller install in the lower of bottom roller to help bend a perfect cylinder from thin to thick plate.
MOVING AXIS
● Can move the upper roller to the left and right.
● Pre-bending of the sheet can be achieved, reducing the amount of straight edges.

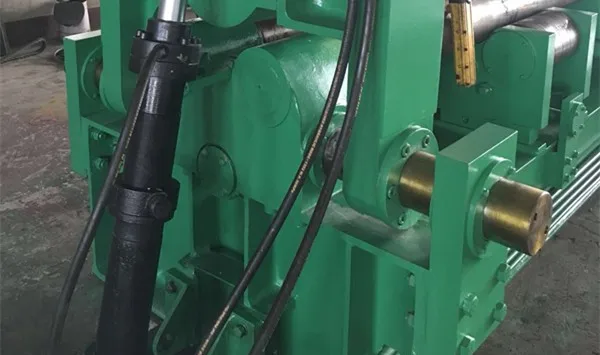

HYDRAULIC SYSTEM
● Through exclusive technology, it can develop cones as easily as competitive machines can develop cylinders.
● It eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination(bullnosing) on the minor diameter edge.
● Yuken valve made in Japan.
MAIN MOTOR
● Main power: China famous brand.
● Main electronic: elements: Siemens made in Germany.

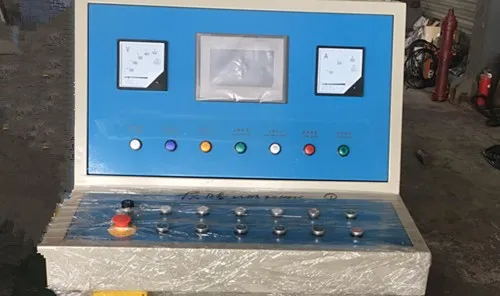

PLC CONTROL SYSTEM
● HMI(human machine interface), intelligent operation, self-compensating, single operate, high efficiency, safe and convenient.
● Many models for choice, economic numerical control model.
● A PLC control system ensure the machine bottom and lateral rolls operate synchronously. Up to eight steps can be programmed with the touchscreen.
